ACE-7659 : The Ultimate digidash


220.00 inc VAT | 272.80 inc VAT | $ 280.49

Product Images (Click to enlarge)

ACEWELL ACE-7659 Digital Dashboard

FEATURES:

  • Simultaneously displays tachometer, speedometer, fuel gauge and bar-graph temperature meter, gear indicator, 4x4 symbol as well as one other digital readout. The extra sensor input can be used to add a sender to show oil temperature if required.

  • Backlight can be switched with sidelights as per IVA / MSVA / MOT requirements

  • Warning lamps meet requirements of IVA / MSVA / MOT test

  • Bar-graph tachometer can be set to show 0-10,000 or 0-20,000 RPM

  • 4x4 symbol can be switched on when 4 wheel or diff-lock drive selected, switched off by default and not visible

  • Compatible with both car and motorcycle engined vehicles

  • Speed input can connect to included magnet/reed switch sensor or optional cable drive adaptor or directly to many speed sensors fitted to automotive gearboxes

  • Gear indicator calculates gear by comparing speed and RPM on manual gearbox cars, so no additional sensors are required

  • 100% water resistant so can be fitted in beach buggies without worrying about rain damage

  • Includes RPM sensing wire, speed sensor, temperature sensor, and generic wiring harness

  • Voltage warning lamp can be configured for the voltages to come on and off to suit any vehicle

  • Programmable Fuel Gauge which can be set for 10-990 ohms resistance for both full and empty so that it can connect to almost any sender.

  • E-Marked for road vehicle use within Europe

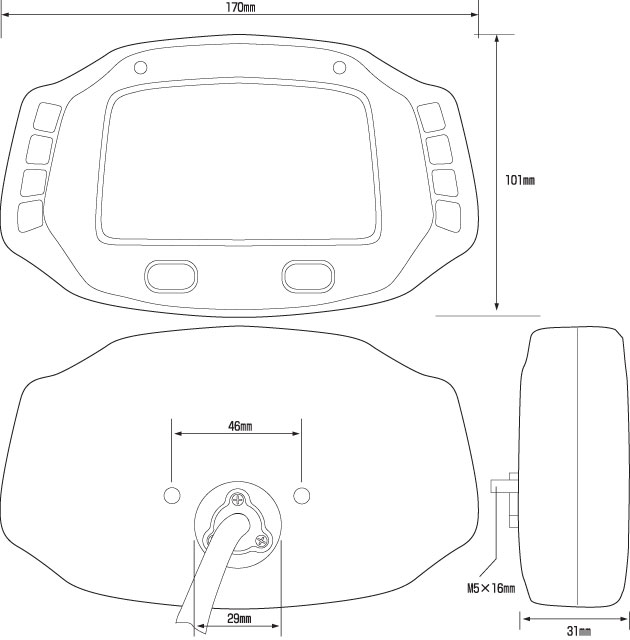

  • 170mm x 100.5mm x 30mm

Each kit Includes:
  • 1 x Computer

  • 1 x Reedswitch Speed sensor and magnet (ACE-G or ACE-S)

  • 1 x ACE-PT1/8 Temperature sensor 1/8 NPT which can be used for water or oil temp.

  • 1 x socket for additional temperature sensor (JST connector)

  • 1 x Set of cables & fitting instructions.



COMPATIBLE WITH GEARBOX SPEED SENSORS
Product Images
(Click to enlarge)

Category Acewell Speedometers
Sub-Category ACE-7xxx
Quantity in Stock 8

Buy This Product

Base Price
220.00 inc VAT

Quantity
