ACE-6656 : High Performance Speedometer analogue RPM to 15000


£ 229.99  £ 199.99 inc VAT | 285.19   247.99 inc VAT | $ 293.24  $ 254.99

Product Images (Click to enlarge)

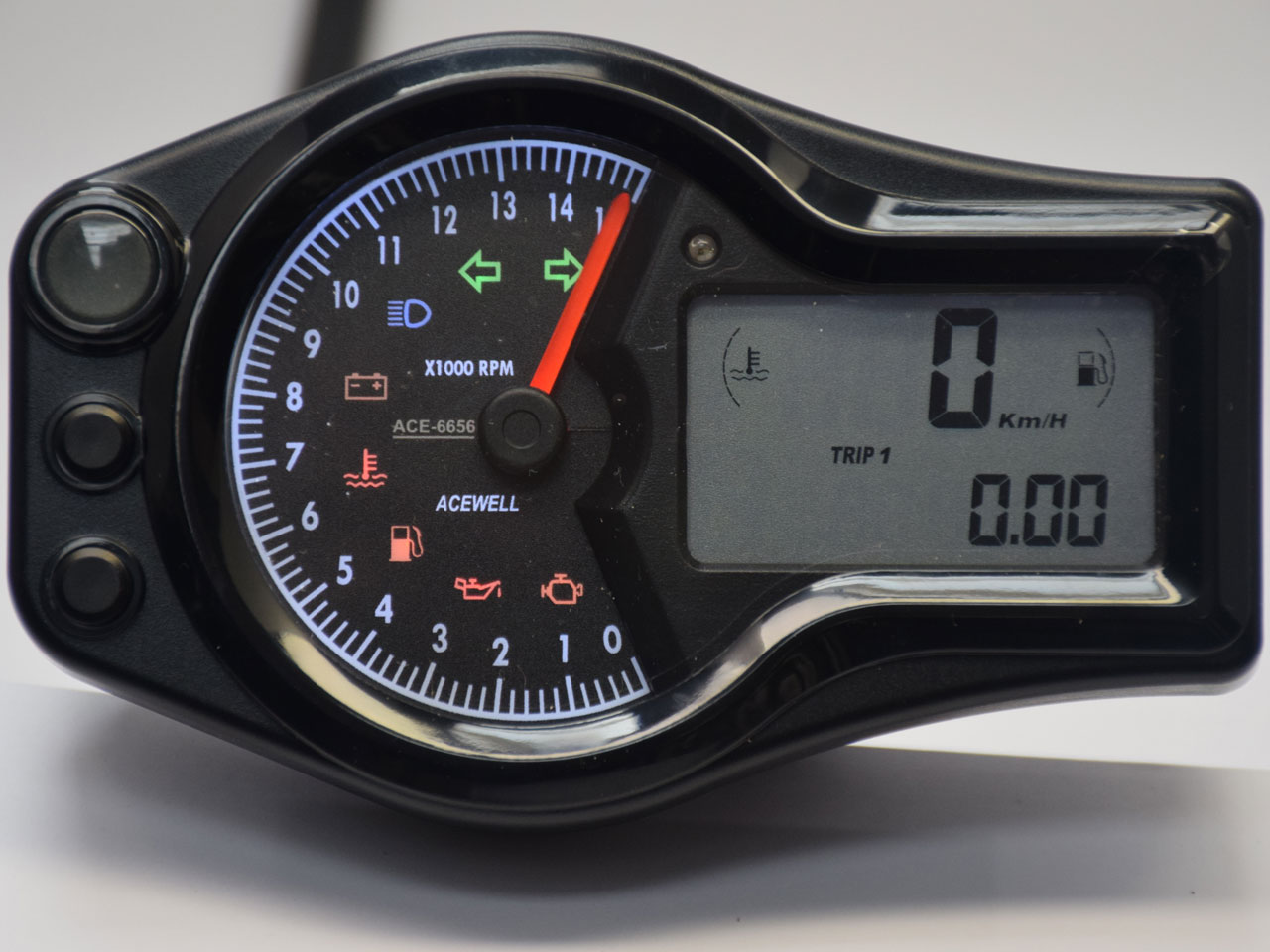

ACE-6656 ATV / Motorcycle / Automotive Computers

Digital speedometer with 0-15000RPM analogue needle tachometer (rev counter)
Includes various engine and signal warning lamps
Finished in high quality black plastic
Small size looks perfect on any sportsbike or streetfighter

Features

features
  • Digial Speed Readout (SPD)
  • Maximum Speed Display (MAX SPD)
  • Average Speed Display (AVG)
  • Odometer (ODO)
  • Trip Meter
  • Clock
  • Resettable Riding Timer (RT)
  • Non-resettable Riding Timer (TT)
  • Resettable Engine Hour Meter (HRT)
  • Engine Hour Meter (HRTT)
  • Maintenance Reminder
  • Temperature Gauge
  • Temperature Sensors
  • High Temperature Warning Lamp
  • Remote Control Option
  • Lap And Race Timers
  • Lap Timer Connections
  • Warning Lamps
  • Warning Symbols Backlit
  • Gear Indicator
  • Digital Rev Counter
  • Programmable Shift Light
  • Needle Rev Counter
  • Voltmeter
  • Bar Chart Fuel Gauge
  • Backlight
  • Battery Charge Warning
  • Waterproof Computer
  • Waterproof Multipin Plugs
  • Weight
  • Plastic Case
  • Enter Odometer Reading When New
  • EMI/EMS Tested CE And E-Marked
  • Vibration (8G) And Mechanical Shock (100G) Tested.

Warning Lamps

warning lamps
Positive switchingNegative SwitchingProcessor controlledLCD symbols

Specifications

specifications
FeaturesSpecification
Model NumberACE-6656
Digial Speed Readout (SPD)0 - 248MPH / 400Km/h
Maximum Speed Display (MAX SPD)0 - 248MPH / 400Km/h
Average Speed Display (AVG)0 - 248MPH / 400Km/h
Max Speed Sensor Input Frequency7KHz (reed sensor / hall sensor / cable drive / electronic gearbox speed sensors)
Odometer (ODO)0-999,999 km / 0-624,999 miles
Trip Meter2 trips, 0-999 km / 0-625 miles
Clock12 / 24 hour clock, also displayed when ignition is off
Resettable Riding Timer (RT)0 - 99h 59min 59sec
Non-resettable Riding Timer (TT)0 - 9999h 59min
Resettable Engine Hour Meter (HRT)0 - 9999h 59min
Engine Hour Meter (HRTT)0 - 9999h 59min
Maintenance Reminder0-99H59'59" / 100H-999H59' / 0-10000km / 0-6000Miles
Temperature Gaugemaximum 160c / 320f
Temperature Sensors1 Engine (& 1 optional extra)
Remote Control Optionsocket fitted to speedometer, remote available as an option
Lap And Race Timers99 Lap, 0-100kmh, 100-0kmh, 0-1/4 mile, 0-100M, 0-400M (only accessible with optional remote)
Lap Timer Connectionsinfrared and magnetic sensors available
Warning Lamps9
Gear Indicator1-8, N, R, P
Digital Rev Counter0-20,000 RPM
Programmable Shift LightLarge Red LED
Needle Rev Counter0-15,000 RPM
Operating Power12v (DC, Negative earth)
Voltmeter8v-18v
Bar Chart Fuel Gauge Input Resistanceoff / reserve / 0-1000 config
BacklightBacklight and power switched independently
Battery Charge WarningUndercharge and overcharge warning
Connector Plugs090 series
Weight282g

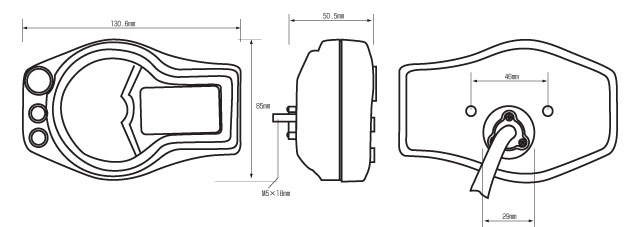

Plastic Case Dimensions130 x 83 x 31mm
Caseblack plastic case
Power Onignition key
Enter Odometer Reading When Newodometer distance can be altered when the number displayed is less than 30km or 18 miles, once this number is exceeded the distance is locked in memory and cannot be altered
Compatible Wheel Size1-3999mm

Included in the kit

included in the kit
  • Head unit
  • Temperature Sensor: optional and optional air temp sensor
  • Mounting Bracket: ACE-Y Stainless steel bracket
  • Mounting Kit: stainless steel nuts, washers, anti vibration washers
  • Speed Sensor: Reed sensor or hall sensor options
  • Mating multipin plugs and cables to solder / crimp into bike wiring (pigtails)
  • Operating Instructions
  • Wiring diagram
